Pipe Fitting

---

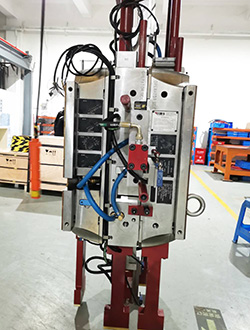

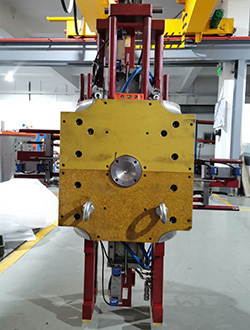

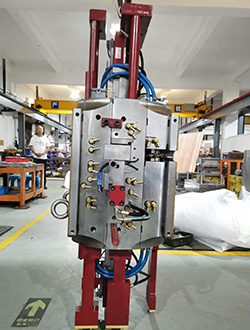

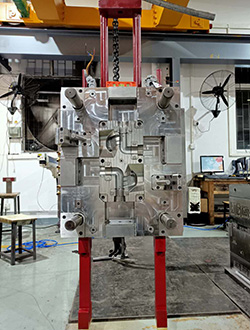

Pipe Fitting Mould(2 cavities/secondary sliders with hydraulic cylinder/PA66+30GF/Texture visible treatment/mass productive )

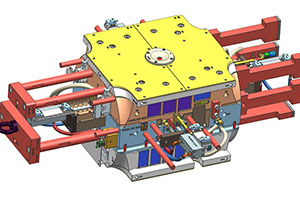

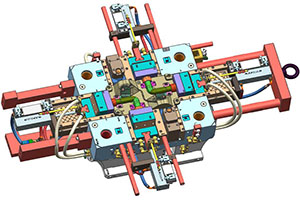

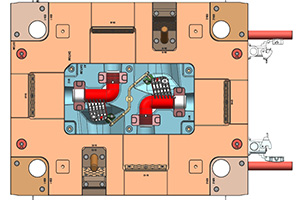

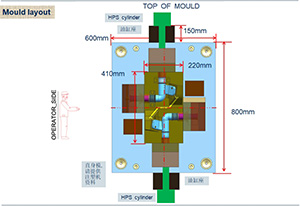

Mold 3D drawing

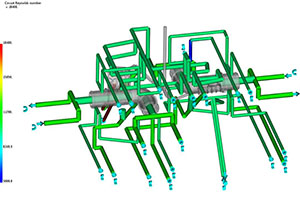

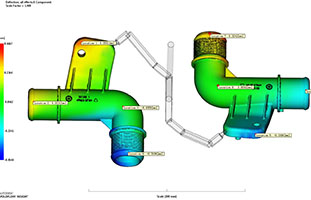

Mold folw analysis

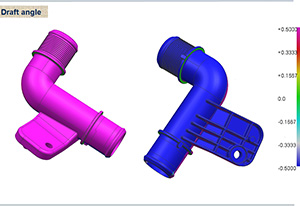

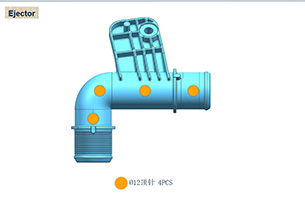

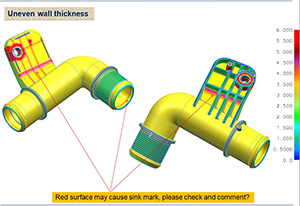

DFM analy:

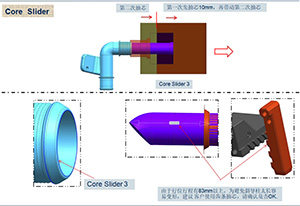

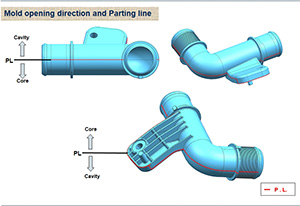

Part line-Molding inserts-Slider-Lifer-Draft angle-Gate layout-Suggestion-Ejector-Surfact treatment-Engraving-Layout.etc
